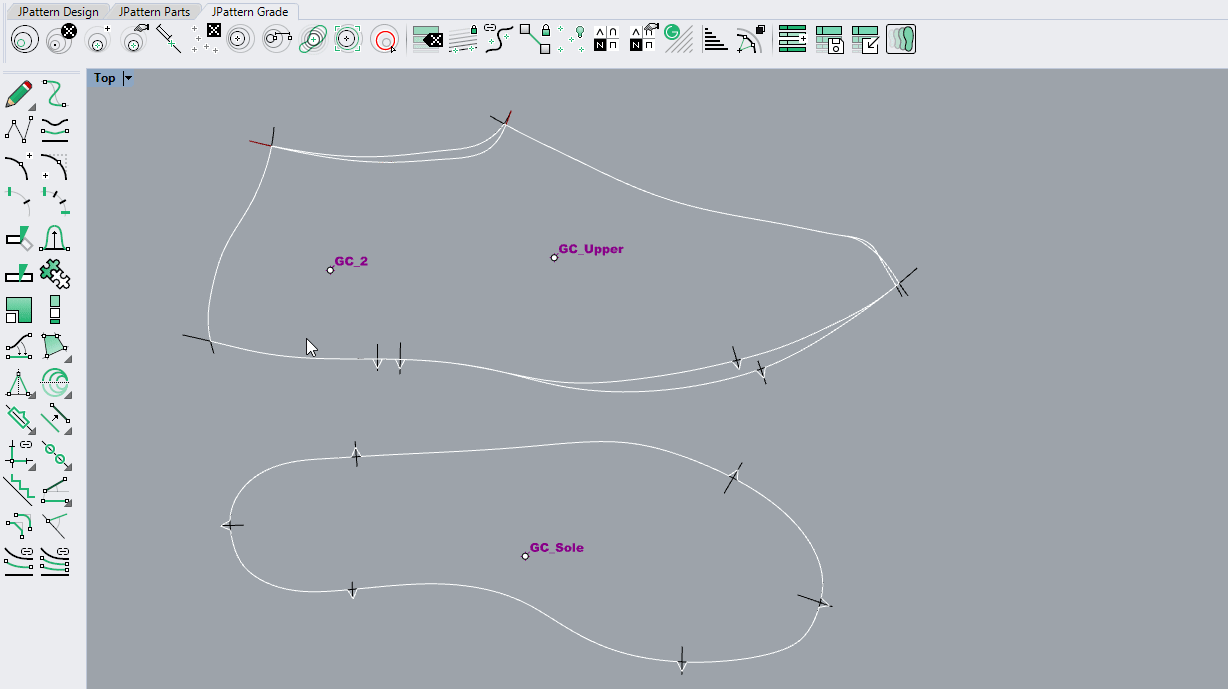

J_GradeCenterStack¶

Align graded curve to a point

With this command, if you have any graded curves pinned to the view, you can pick one of their points to align all the curves to it.

Find it in: JPattern Grade toolbar

Steps¶

1. Pick a point among the ones highlighted.
2. Press Enter (or right-click) to exit the command and keep the current view. Use J_GradeCenterEndStack to reset the position of the graded curves

J_GradeLayoutStack¶

Layout graded curves according to an offset

With this command, if you have any graded curves pinned to the view, you can specify a direction along which to spread them.

Steps¶

1. Pick the first point of the translation to be applied to all the graded curves.
2. Pick another point to determine the end of the translation to be applied.
