J_ExportData

Export model to various formats

Use this command to export the parts contained in the model to other file formats compliant with cutting machines or other softwares

Find it in: JPattern Design toolbar

Steps

  1. Chose a file name and a file type
  2. Select a configuration among the ones available for the chosen file format
  3. Select the parts and the sizes to export and any desired available option, then click Ok

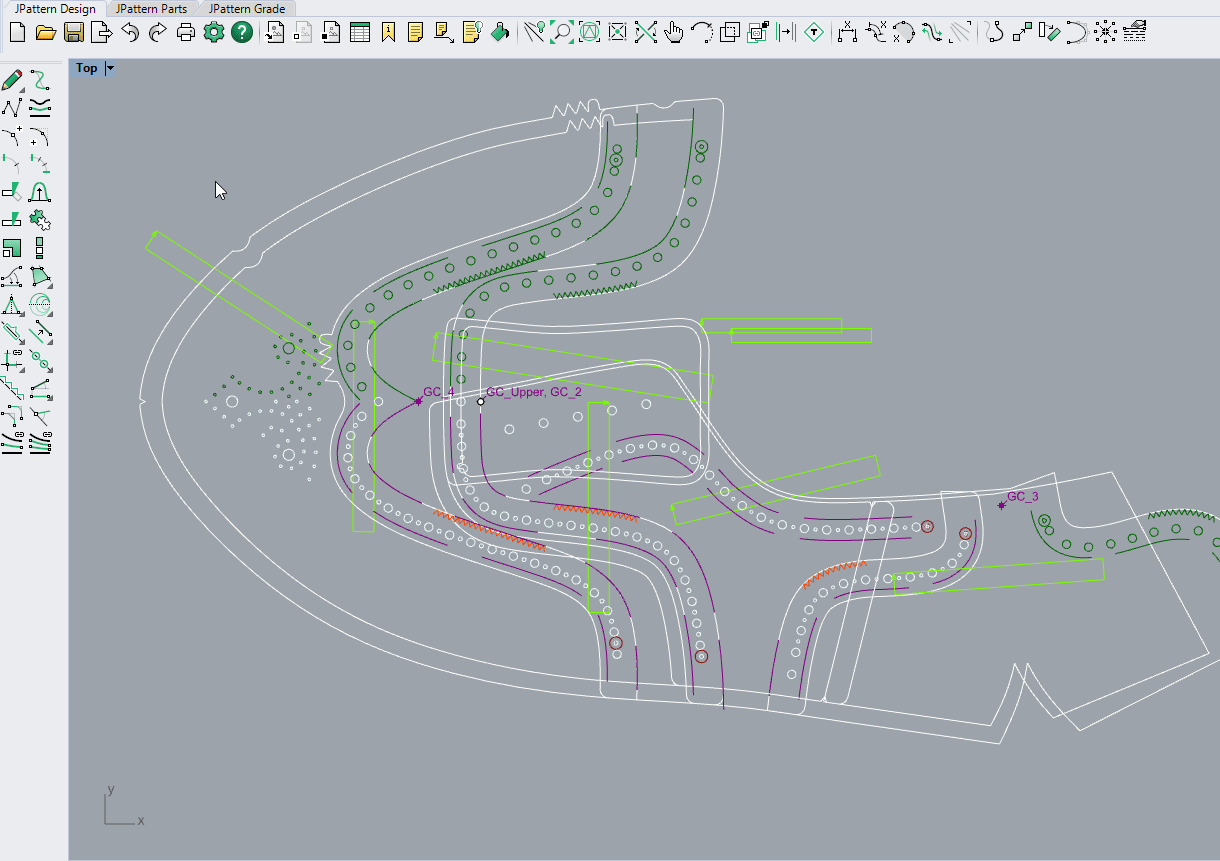

Export data tutorial

Options

  • Export size code: allows to export the size codes
  • Export printbox: allows to include printboxes in the exported file
  • Layout parts: if checked, each part and its sizes are arranged in the exported file so that they do not overlap
  • Layout sizes: if checked, each size is arranged in the exported file so that they do not overlap

If both Layout parts and Layout sizes are checked, parts and sizes are arranged in a "grid-like" manner, with one size per row and one part per column.

Remarks

  • You can create a new configuration for the selected export format by clicking on the Custom configuration button.
  • It may happen that some curve in your model are mistakenly moved from the construction plane, as Rhinoceros allows 3D curves. In that case a warning will be shown with a suggestion to fix this problem.

J_BatchExportData

Export the model to various formats in batches using different configurations

Use this command if you want to export parts/sizes in the model to file formats compliant with other softwares, genarating different files based on different configuration settings in a single run.

Find it in: JPattern Design toolbar

Steps

  1. Choose a file name and a file type
  2. Select a configuration among the ones available for the chosen file format
  3. Select the parts and the sizes to export and any desired available option
  4. Click Confirm to add a batch to the export list
  5. Repeat steps 2, 3, and 4 until you have added all the parts/sizes with the desired configuration you intend to export
  6. Click Ok to export each batch to a single file (one file per batch)

Remarks

You can create a new configuration for the selected export format by clicking on the Custom configuration button.

It is possible to remove a size, a part or an entire batch from the export list, in case it was mistakenly added.
